VisiClean

1 2

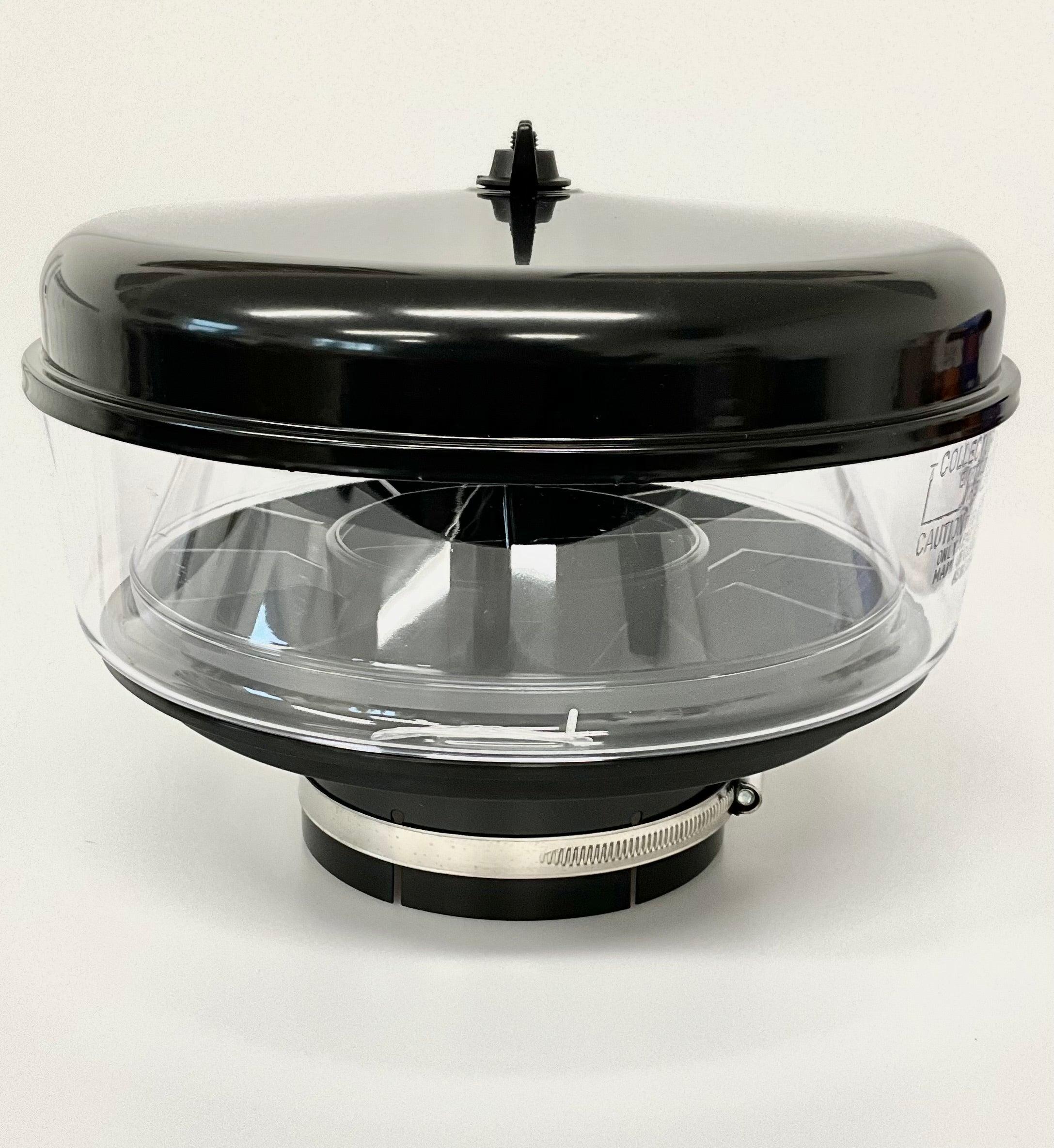

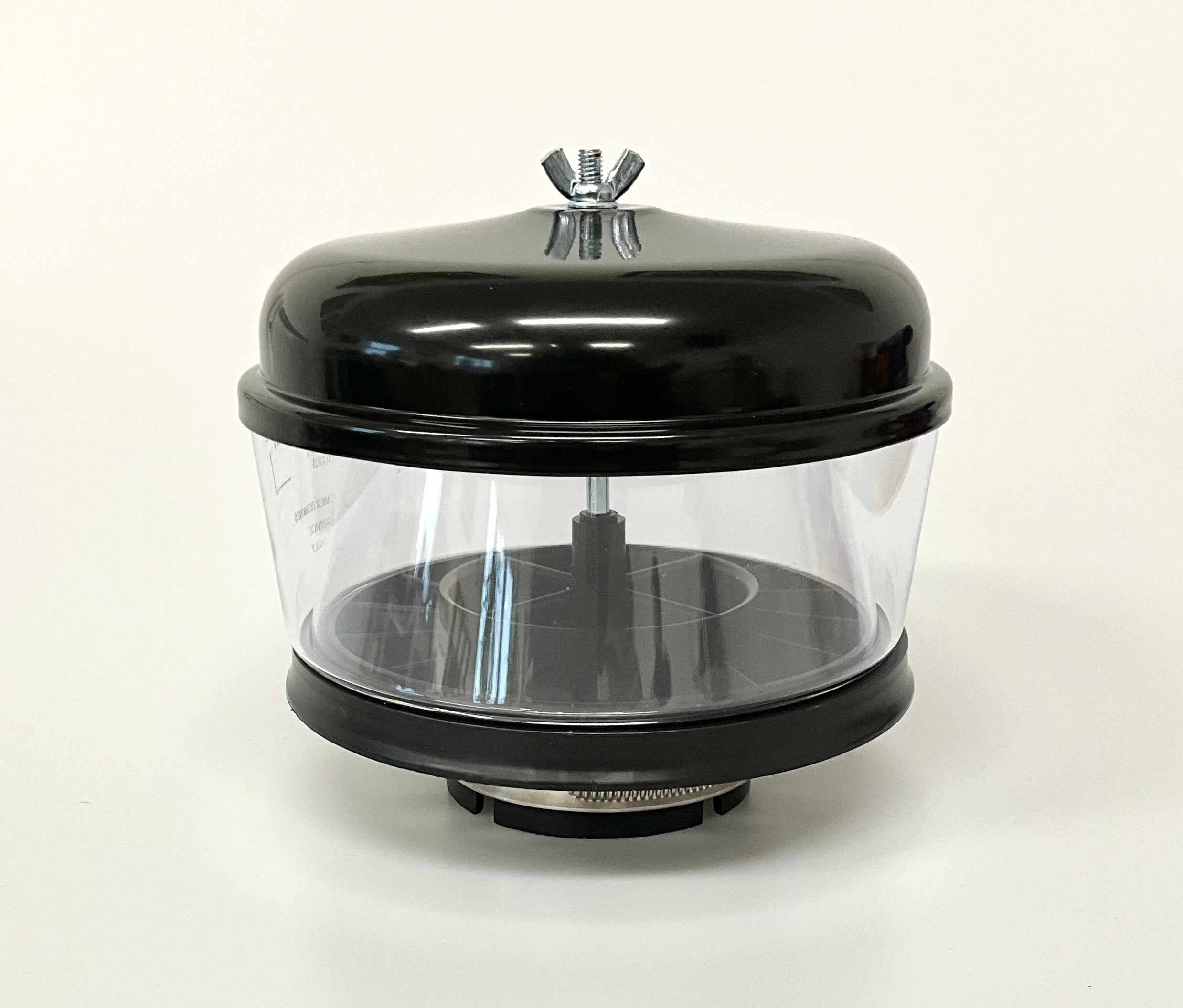

Clear View Pre-Cleaner

Is a clear view pre-cleaner that provides air cleaner protection against airborne particles such as fertiliser, rain, hail, leaves, hay, twigs, dust, insects, snow and sand. VisiClean also reduces engine noise and extends servicing intervals.

The first stage of separation is created by the centrifugal deflector system, this removes 75-85% of heavy dust particles. With the bowl being clear view the operator can easily see and dispose the dust collected by removing the top section of the pre-cleaner.

VisiClean Clear View Pre-Cleaner Range (Air Flow m³/min)

  • CT-11803 (1.4) m³/min
  • CT-13285 (1.4 -1.5)
  • CT-12982 (1.4 - 1.7)
  • CT-13104 (1.8 - 3.3)
  • CT-11193 (2.1 - 3.7)
  • CT-13284 (2.1 - 41)
  • CT-11216 (2.1 - 4.6)
  • CT-12832 (2.1 - 4.8)
  • CT-11192 (2.5 -5.1)
  • CT-11938 (2.5 - 5.3)
  • CT-11669 (2.5 - 5.3)
  • CT-14318 (2.5 - 5.5)
  • CT-11444 (2.5 - 6.1)
  • CT-11939 (2.5 - 6.4)
  • CT-14068 (3 - 6.8)
  • CT-11283 (3 - 6.7)
  • CT-13088 (3 - 7.5)
  • CT-11456 (3 - 6.9)
  • CT-16930 (5 - 9)
  • CT-14049 (5 - 8.8)
  • CT-11050 (5 - 10)
  • CT-11185 (5.6 - 11.3)
  • CT-12972 (6 - 11)
  • CT-16781 (9.5 - 19.5)
  • CT-16825 (9.5 - 19.5)
  • CT-11454 (6 - 11.8)
  • CT-13304 (6 - 12)
  • CT-13431 (7 - 13.1)
  • CT-11455 (8 - 14.7)
  • CT-13282 (8.5 - 20.1)
  • CT-13283 (9 - 23)
  • CT-13209 (9 - 23.7)
  • CT-13563 (11 - 28)
  • CT-15953 (11 - 30)
  • CT-15971 (11 - 33.4)
  • CT-14071 Conical Inlet (2.5 - 5.4)
  • CT-13089 Conical Inlet (3 - 7.5)
  • CT-12195 Conical Inlet (5.6 - 11.4)
  • CT-14100 Conical Inlet (8 - 20.2)
