Vortex

1 3

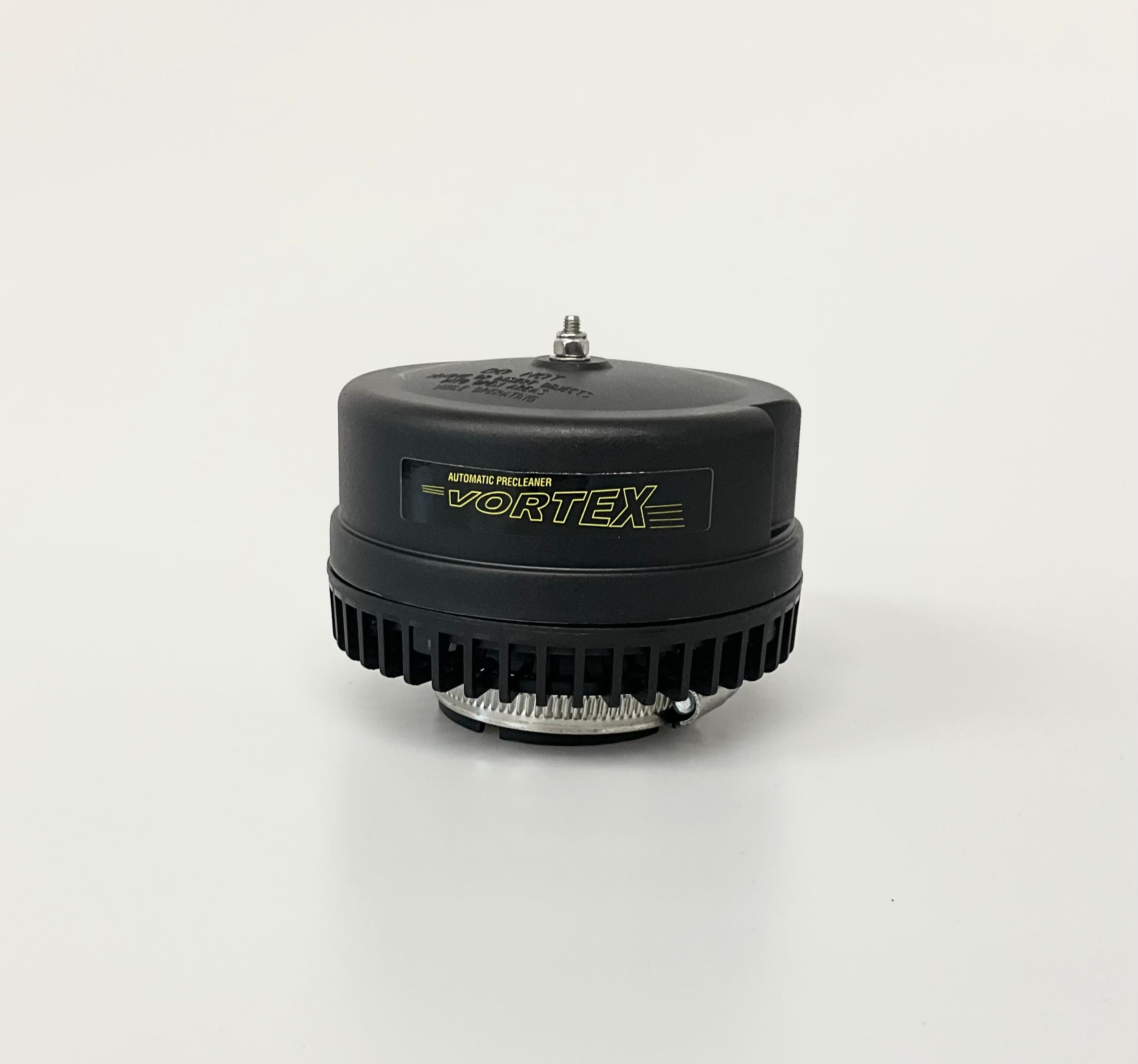

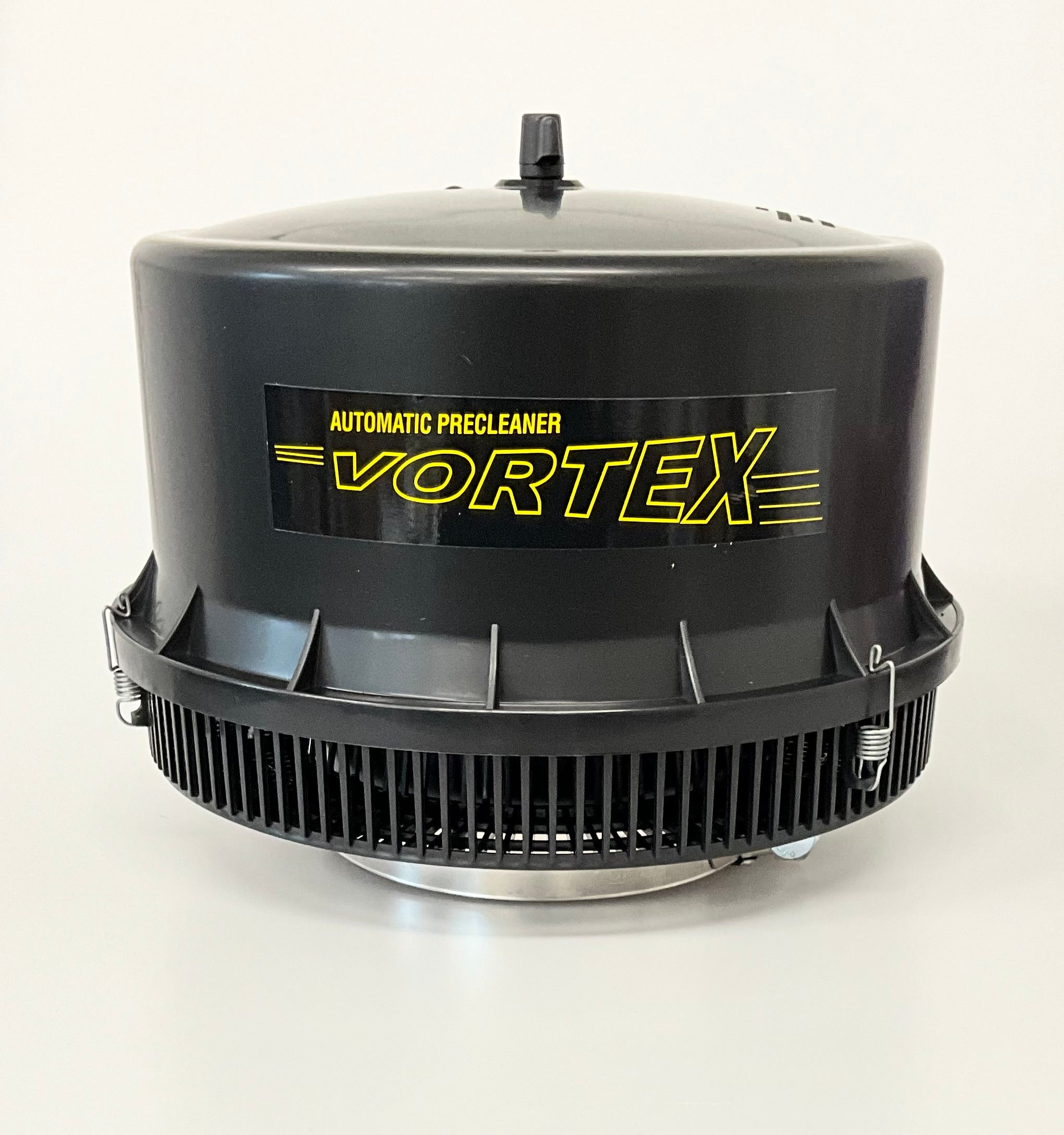

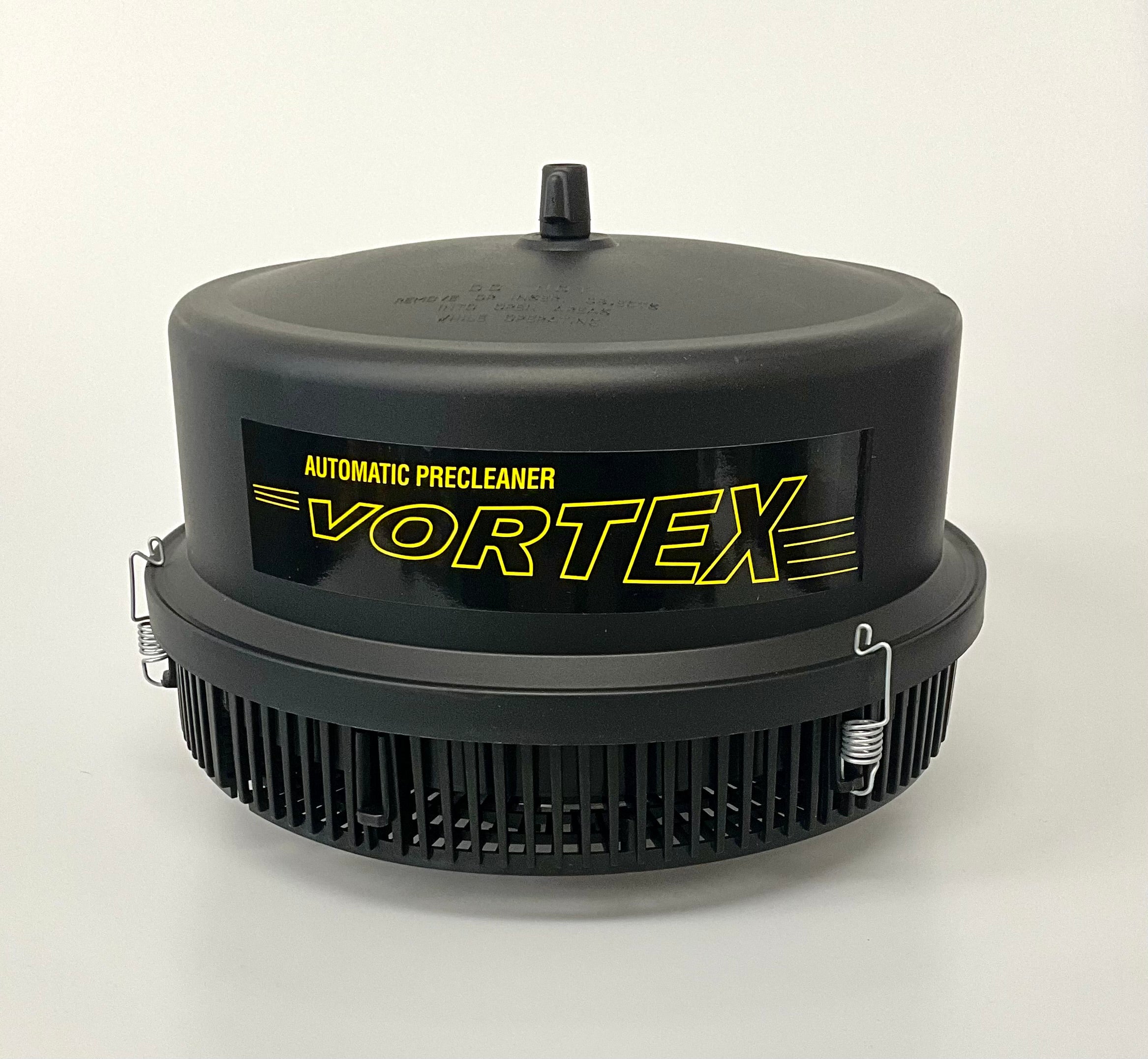

Automatic Pre-Cleaner

Is an automatic pre-cleaner that provides air cleaner protection against airborne particles such as rain, hail, leaves, hay, twigs, sparks, cinders, dust, insects, snow and sand. Vortex also reduces engine noise and extends servicing intervals.


THe pre-cleaner uses continuous expulsion, that separates and removes more than 87.5% of SAE COARSE dirt and up to 99% of larger airborne particles. Lightweight and can be mounted on most air cleaners, with no restraint on the positioning and can operate horizontally or vertically.

Key Points

  • Removes more than 87.5% of SAE COARSE dirt and up to 99% of larger airborne particles.
  • Low initial restriction
  • Better anti-noise effect than basic pre-cleaners
  • Light weight and can be mounted on any air cleaner
  • No restraint on the positioning, operates horizontally or vertically

Vortex Automatic Pre-Cleaner Range

  • CV-15481 (38mm ID)
  • CV-16818 (45mm ID)
  • CV-15478 (51mm ID)
  • CV-15318 (51mm ID)
  • CV-15276 (63.5mm ID
  • CV-16556 (70mm ID)
  • CV-15251 (76mm ID)
  • CV-15240 (76mm ID)
  • CV-16921 (82.2mm ID)
  • CV-14750 (96mm ID)
  • CV-14771 (96mm ID)
  • CV-14767 (102mm ID)
  • CV-14769 (102mm ID)
  • CV-16640 (110mm ID)
  • CV-14770 (114mm ID)
  • CV-14775 (114mm ID)
  • CV-15802 (114mm ID)
  • CV-15497 (127mm ID)
  • CV-15616 (127mm ID)
  • CV-17300 (127mm ID)
  • CV-15933 (152mm ID)
  • CV-15620 (152mm ID)
  • CV-15922 (178mm ID)
  • CV-16221 (203mm ID)
  • CV-17482 (203mm ID)
  • CV-17408 (228mm ID)
  • CV-17410 (255mm ID)

IMPORTANT: Vortex model selection must be based entirely on the airflow range used by the engine or compressor and not the intake pipe diameter.
