Vortex CV-15620 Automatic Pre-Cleaner (152mm ID)

Is a high quality automatic pre-cleaner by Virgis Filter.

Its function is to provide protection to the air cleaner, protecting it from rain, hail, leaf's, hay, twigs, sparks, cinders, dust, insects, snow and sand, which results in extending servicing intervals and reduced engine noise.

IMPORTANT: Vortex model selection must be based entirely on the airflow range used by the engine or compressor and not the intake pipe diameter.

The automatic pre-cleaner uses continuous expulsion, that separates and removes most airborne particles. Key Points Removes more than 87.5% of SAE COARSE dirt and up to 99% of larger airborne particles.

Low initial restriction Better anti-noise effect than basic pre-cleaners Light weight and can be mounted on any air cleaner No restraint on the positioning, operates horizontally or vertically

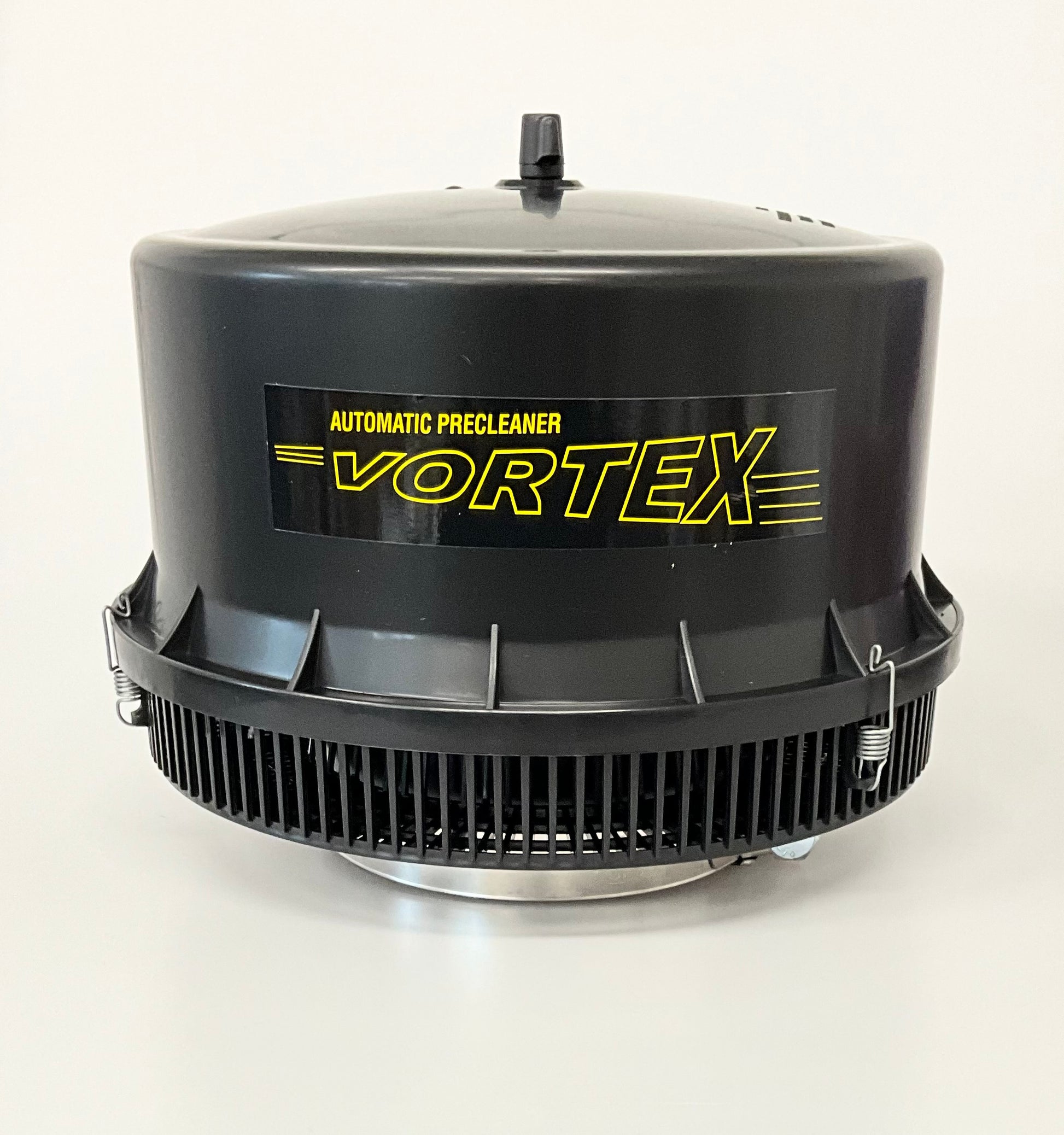

Picture of image is a representation

Specification (see dimension image)

Air Flow (m³/min) 11.6 - 27.2

D1: 152mm

D2: 300mm

H1: 31mm

H2: 37.5mm

H3: 214mm
